顱內血栓抽吸系統 Intracranial Thrombus Aspiration System

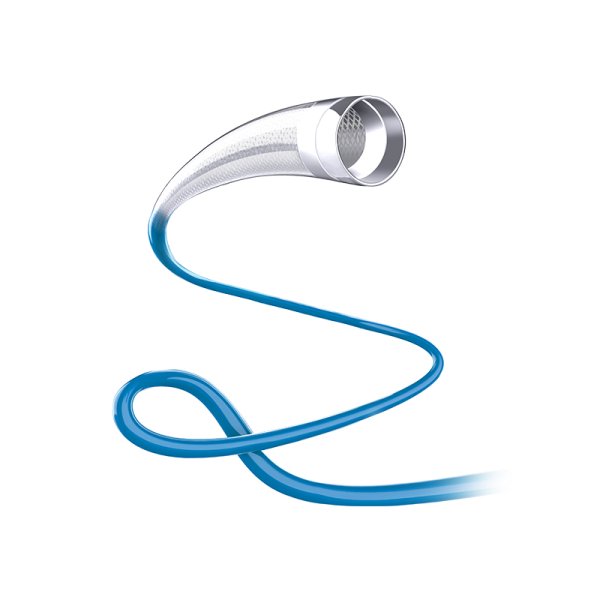

[Aspiration Catheter] : Stable Procedural Control
Effective length: 1200｜1150｜1050｜950

Spring coil + Braided double-layer structure design

• Enhances anti-kinking performance, quickly navigates tortuous vessels to reach the lesion site.
• Resists bending and collapsing, ensuring smooth flow path and stable control, efficient aspiration.

Introduced via vertebral or femoral artery

• Provides enhanced support via femoral artery with a guiding catheter.
• 6F catheter can be navigated through tortuous arteries using a guidewire or guiding catheter.

10-Segment Tapered Design

• Significantly enhances pushability and positional accuracy.
• 0.088" catheter reaches M1; 0.071" catheter reaches M1–M2.

Ultra-smooth hydrophilic coating

• Excellent pushability with low resistance.
• Smooth navigation through tortuous vessels and Rapid and Accurate Positioning.

[Large Lumen Design] : Powerful Aspiration

Specification: 0.088 "(2.24 mm) 8Fr

Specification: 0.071 "(1.80 mm) 6Fr

Available Sizes: 0.088" (2.24 mm) | 0.071" (1.80 mm)

• Distal tip cross-sectional area of the 0.088" catheter is up to 50% larger than conventional 0.071" catheters.
• Delivers significantly higher aspiration efficiency.
• Minimizes thrombus displacement or detachment and helps shorten procedure time.

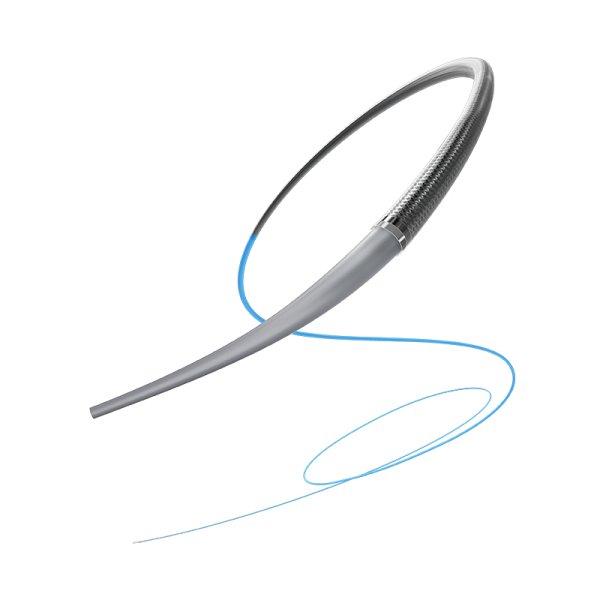

[Includes Guiding catheter] : First Fully Integrated Configuration

Enhanced Pushability

• 5-segment progressive taper provides optimized pushability.

Reduce risk of vascular injury

• Custom size-matching interface.
• Effectively prevents step-off at vessel bifurcations.
• Ensures smoother overall system transit.

Outstanding Visibility

• Fully radiopaque design for precise visualization.
• Clear catheter positioning throughout the procedure for enhanced safety and confidence.

High-Efficiency Positioning

• 137 cm working length ensures rapid access to the target anatomy.
• Extended, super-soft tip enhances pushability and maneuverability.

[Thrombectomy Aspiration pump]: Efficient Aspiration
Safe & Sterile，Designed for Convenience

• Single-use, sterile aspiration pump to eliminate cross-contamination risks and enhance patient safety.

• Can be placed directly on the operating table for close-range observation of the aspiration process.
• No repeated cleaning or re-sterilization required, greatly reduces maintenance effort and cost.

Compact Size, Powerful Aspiration

• Delivers stable high negative pressure (>90 kPa) for effective removal of clot.
• Includes a vacuum syringe to enhance suction force and reduce risk of catheter blockage.
• Low-flow design helps minimize blood loss during aspiration, providing a safer aspiration experience.

Easy Control, Real-Time Feedback

• Single-operator control with one-button for convenient operation.
• No external power supply required; supports extended operation (>60 minutes of continuous aspiration).
• Integrated thrombus filter enables rapid clot separation and provides real-time feedback.
